​As part of the geochemistry programme, a wide range of elements and compounds are measured in three environmental media: topsoil, stream water and stream sediment. Other samples collected but not routinely analysed include subsoil, vegetation and panned concentrate samples – these are available from the GSI archive on request.

                                                             Shallow Soil

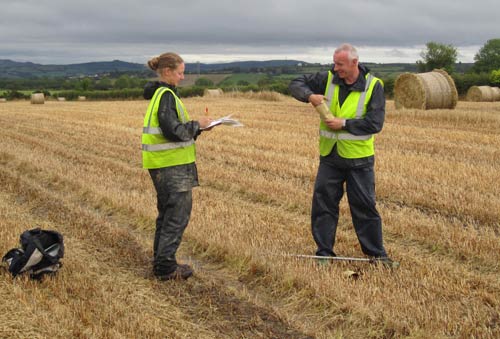

1. Sampling



  • Composite sample from points and centre of 20 m x 20 m square
  • Collection by hand auger to 20 cm and 50 cm depths

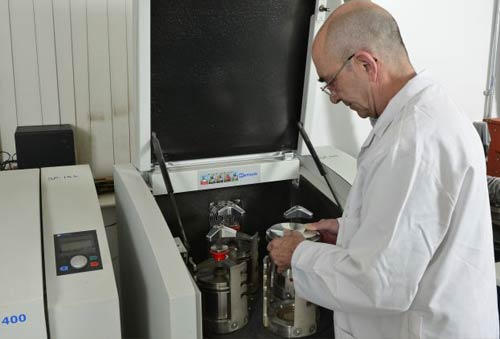

​2. Preparation



  • Drying
  • Disaggregation
  • Milling to fine powder pulp

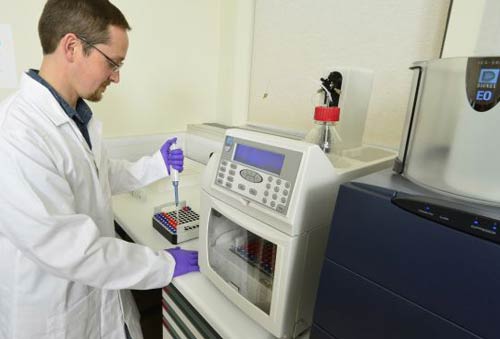

​3. Analysis



  • Multi-element ICP-MS
  • Multi-element XRFS
  • pH and Loss-on-ignition (organic carbon)

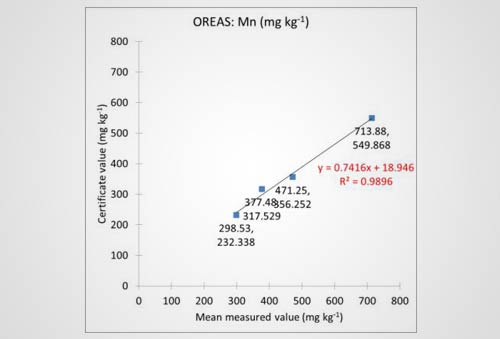

​4. Data Processing



  • Quality control
  • Statistical analysis
  • Mapping
  • Interpretation

                                                                Stream Sediments​ ​

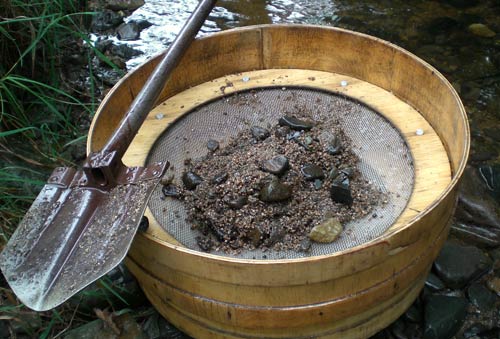

​1. Sampling



  • In-situ wet sieving technique from small streams
  • Collection of <150 µm fraction

​2. Preparation



  • Drying
  • Disaggregation

​4. Analysis



  • Multi-element XRFS
  • Precious group elements fire assay



​3. Data Processing



  • Quality control
  • Statistical analysis
  • Mapping
  • Interpretation

​Stream Water ​

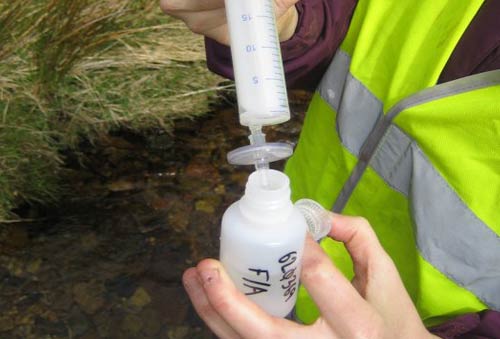

​1. Sampling



  • Collection of filtered water, <0.45µm

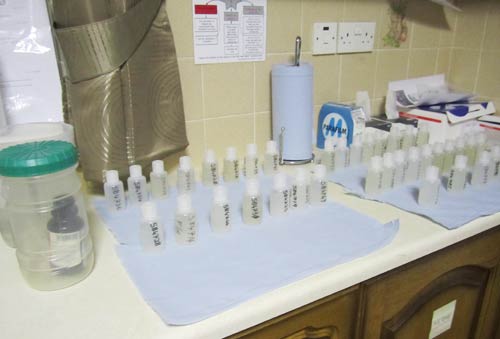

​2. Preparation



  • Acidification

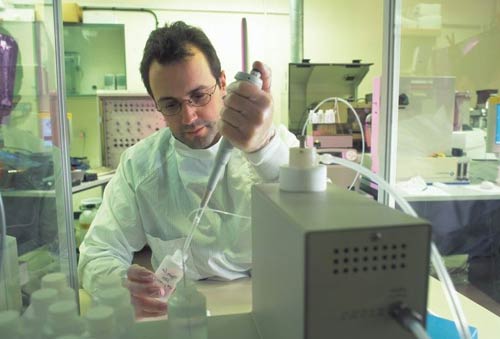

​3. Analysis



  • Multi-element ICP-MS
  • Major ions IC
  • Organic carbon

​4. Data Processing



  • Quality control
  • Statistical analysis
  • Mapping
  • Interpretation
